Imagine a ship pulling into port, carrying a cargo that has been cooled to nearly -260°F. While it might seem like a straightforward process of discharging liquid natural gas (LNG) with a few hose connections, the underlying operations are incredibly intricate and vital for safety. In this post, we will navigate the nuances of unloading LNG: from ship compatibility, safety checks, to the very cooling processes that take place before the LNG can even touch the shore facilities.
Understanding LNG and Its Obsession with Temperature
What is LNG?
LNG, or liquefied natural gas, is primarily composed of methane (CH4). To store it in liquid form, it must be cooled to an astonishing -260°F (approximately -162°C). This process transforms natural gas into a liquid, allowing for efficient storage and transportation. The significance of LNG in energy storage cannot be overstated. It enables countries to transport natural gas over long distances where pipelines are not feasible. This makes LNG a crucial player in the global energy market.
The Importance of Temperature Management
When unloading LNG, managing temperature is paramount. Why? Because LNG is extremely cold. If not handled properly, the risk of accidents increases significantly. As a Chief Engineer once stated,
“The safe unloading of LNG requires respecting the physics of extremely low temperatures.”This means that every step of the unloading process must be meticulously planned and executed to ensure safety.
Benefits and Challenges of Handling Cold Materials
Handling LNG comes with both benefits and challenges. On the one hand, LNG has a high energy density, making it an efficient fuel source. It can deliver more energy per unit volume compared to other fuels, such as diesel. However, the extreme cold poses challenges. The complexity of transferring LNG involves managing heat exchangers and mechanical systems that must withstand these low temperatures. This requires specialized training and equipment.
A Brief Historical Context
The use of LNG dates back to the 19th century, but it gained significant traction in the late 20th century. As the demand for cleaner energy sources grew, LNG emerged as a viable alternative to coal and oil. Today, it plays a vital role in reducing greenhouse gas emissions and is increasingly used in power generation and transportation. The historical evolution of LNG highlights its importance in the transition to sustainable energy.
Comparing LNG to Other Fuels
When comparing LNG to other fuels, its energy density stands out. LNG can deliver about 60% more energy per unit volume than diesel fuel. This characteristic makes it an attractive option for industries looking to maximize efficiency. However, the cold temperatures at which LNG must be stored and transported present unique challenges that other fuels do not face.
Temperature Management During Unloading
The unloading process of LNG is intricate. It involves constant monitoring of temperatures and pressures throughout the operation. The critical role of temperature management cannot be overstated. It ensures that the LNG remains in a liquid state and that the equipment does not suffer from thermal shock. As a Maritime Safety Expert noted,
“Our protocols ensure precision, responsibility, and above all, safety in every discharge operation.”
Data Insights
Here are some key data points regarding LNG:
- LNG temperature: -260°F (approx -162°C)
- Energy density: LNG vs. diesel fuel
- Usage statistics: LNG in the energy sector
Visual Representation of LNG Data
Below is a chart illustrating the temperature of LNG, its energy density compared to diesel fuel, and usage statistics in the energy sector:
-260°F
LNG vs. Diesel Fuel
LNG Usage in Energy Sector
Conclusion
In summary, understanding LNG and its obsession with temperature is crucial for anyone involved in the energy sector. The complexities of handling such cold materials, the historical context of LNG use, and its comparison to other fuels highlight its importance in today's energy landscape. As the world moves towards cleaner energy sources, LNG will undoubtedly play a pivotal role.
Protocols and Compatibility: The Foundation of Safe Unloading
When it comes to unloading LNG (Liquefied Natural Gas) from a ship, the importance of compatibility between the ship and the terminal cannot be overstated. It's not just about the physical connections; it's about ensuring that everyone involved is on the same page. As one industry expert aptly put it,
“Compatibility isn’t just technical; it's about people functioning as a unified team.”This statement encapsulates the essence of what makes the unloading process safe and efficient.

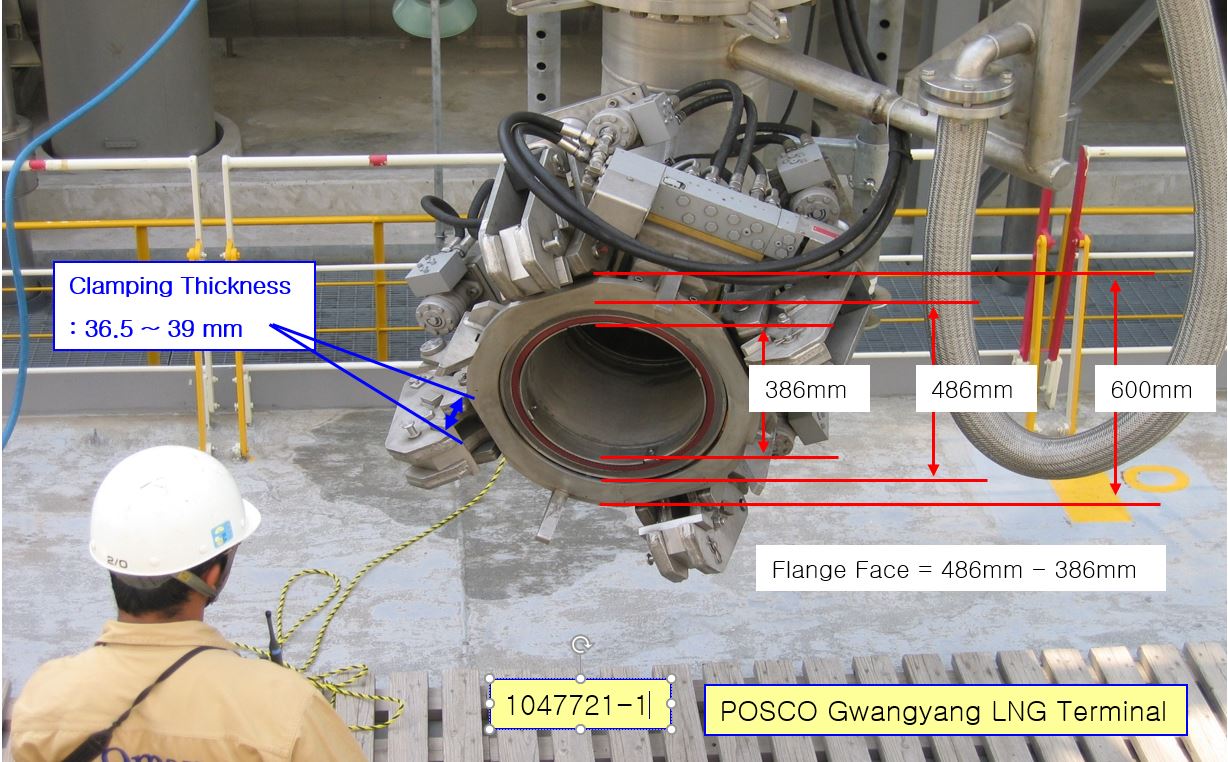

1. Significance of Ship and Terminal Compatibility
Imagine trying to plug in a device without the right adapter. It simply won’t work. The same principle applies to LNG operations. Each LNG terminal has its own unique set of procedures and protocols. These can vary significantly from one terminal to another. Therefore, understanding these differences is crucial for a smooth operation. The crew must be familiar with the terminal's specific requirements, from how to approach the dock to how to connect the unloading arms.
2. Pre-Arrival Sync-Up Meetings and Their Role in Safety
Before a ship even approaches the terminal, pre-arrival sync-up meetings play a vital role in ensuring safety. These meetings involve representatives from both the ship and the terminal, where they discuss the entire unloading plan. They review schedules and double-check safety measures. This is essentially a big sync-up to ensure everyone is aligned.
During these meetings, the teams go through joint safety checklists. This raises an interesting question: Are these checklists merely a formality, or are they truly necessary? The answer is clear. They are essential. Both sides must confirm that every critical safety procedure has been acknowledged and agreed upon. This shared commitment is what keeps everyone safe.
3. Joint Safety Checklists: Necessity or Formality?
Joint safety checklists serve as a crucial tool in the unloading process. They ensure that both ship personnel and terminal staff are aware of their roles and responsibilities. It’s not just about ticking boxes; it’s about fostering a culture of safety. Each checklist item represents a potential risk that has been addressed. If any item is overlooked, it could lead to catastrophic consequences.

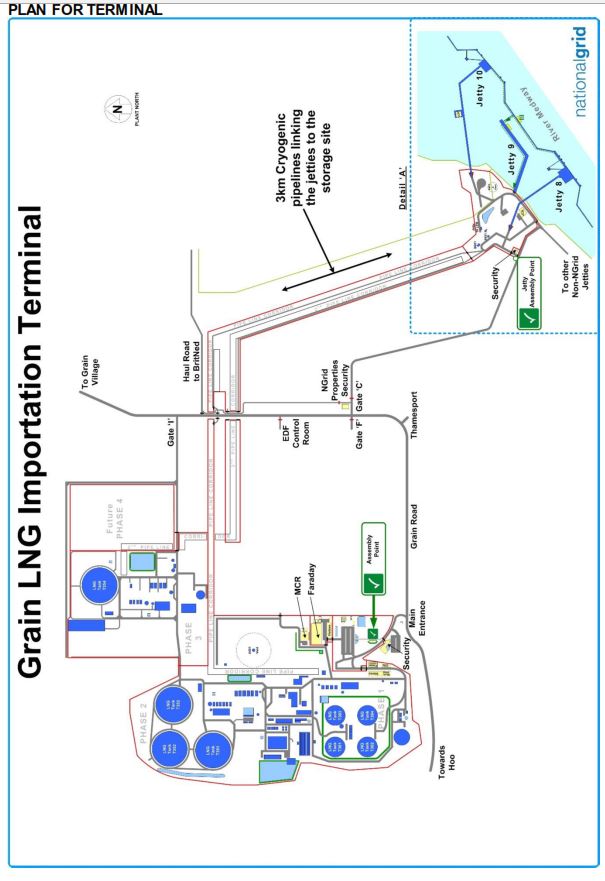

4. Reviewing Terminal-Specific Protocols
Each LNG terminal has its own specific protocols that must be followed meticulously. For instance, the procedures for connecting unloading arms, transferring LNG, and even disconnecting the ship can differ. This is why reviewing terminal-specific protocols is essential. The crew must be prepared to follow these procedures down to the letter. There’s no room for improvisation in such a high-stakes environment.
5. Case Study: A Terminal Mishap Due to Poor Communication
To illustrate the importance of communication, consider a case study involving a terminal mishap. In this incident, poor communication between the ship’s crew and terminal staff led to a significant safety breach. The unloading process was rushed, and critical safety checks were skipped. As a result, there was a leak, which could have been avoided had there been better communication and adherence to protocols.
This case serves as a stark reminder that safety is not just about following procedures; it’s about ensuring that everyone involved understands their role and communicates effectively. It highlights the necessity for thorough preparation and communication prior to discharge.
6. Conclusion
In conclusion, the unloading of LNG is a complex operation that requires meticulous planning and coordination. The significance of ship and terminal compatibility cannot be overstated. Pre-arrival meetings and joint safety checklists are not just formalities; they are essential components of a safe unloading process. By reviewing terminal-specific protocols and learning from past incidents, the industry can continue to improve safety standards.
As the LNG industry evolves, the focus on protocols and compatibility will remain a cornerstone of safe unloading practices. Understanding that every LNG terminal possesses unique procedures underlines the necessity for thorough preparation and communication prior to discharge.
The Chief Officer's Role: Coordination and Command
Overview of Responsibilities
The chief officer plays a crucial role during the discharge of liquefied natural gas (LNG). They are responsible for overseeing the entire operation, ensuring that everything runs smoothly and safely. Think of the chief officer as the conductor of an orchestra, where every note played must follow a perfect sequence. This analogy highlights the importance of coordination and timing in their duties.
From the moment the vessel approaches the terminal, the chief officer must ensure that all preparations are in place. This includes coordinating with terminal staff, conducting safety checks, and developing a detailed discharge plan. The chief officer acts as the bridge between the crew's execution and the terminal's communication, facilitating both preparation and monitoring.
Importance of Detailed Plans and Calculations for Stability
One of the chief officer's primary responsibilities is to create a detailed plan for the discharge process. This plan is not just a formality; it is essential for maintaining the vessel's stability. LNG is extremely heavy, and as it is unloaded, the ship's weight distribution changes. Without careful calculations, the ship could become unstable.
- Stability Calculations: The chief officer must calculate how much LNG will be discharged and how much ballast water needs to be taken on to maintain balance.
- Ballasting: As LNG is unloaded, seawater is pumped into the ballast tanks to compensate for the weight loss. This process requires precise calculations to ensure the vessel remains stable.
In essence, the chief officer's planning is vital for the safety of the crew and the vessel. Mismanagement in this area can lead to severe consequences, including vessel instability and operational disruptions.
Managing Ballast Water During the Unloading Process
Managing ballast water is another critical aspect of the chief officer's role. As LNG is discharged, the chief officer must ensure that seawater is pumped into the ballast tanks at the same time. This dual operation is crucial for maintaining the ship's balance.
The ballast water treatment system (BWTS) plays a significant role in this process. It filters and treats the ballast water before it is pumped into the tanks, preventing the spread of invasive species. The chief officer must oversee this operation, ensuring that the system functions correctly and that the ship remains stable throughout the unloading process.
Ensuring Team Members Weigh In on All Operations
Collaboration is key in LNG discharge operations. The chief officer must ensure that all team members are involved in the process. This includes conducting pre-discharge meetings with terminal staff to review safety protocols and operational plans.
- Pre-Discharge Meetings: These meetings allow both the ship's crew and terminal staff to align on procedures and safety measures.
- Joint Safety Checklists: Both parties walk through a checklist to confirm that every critical safety procedure has been acknowledged and agreed upon.
By fostering open communication and collaboration, the chief officer helps create a culture of safety and accountability. This teamwork is essential for the successful execution of LNG discharge operations.
Using Cargo Monitoring Records for Operational Checks
Throughout the discharge process, the chief officer must monitor cargo levels, temperatures, and pressures. This is done using cargo monitoring records, which help track the progress of the discharge and identify any potential issues early on.
- Continuous Monitoring: The chief officer checks liquid levels in the tanks, ensuring that everything is proceeding as planned.
- Documentation: Accurate records are crucial for operational checks and for maintaining safety standards.
By keeping a close eye on these metrics, the chief officer can make informed decisions and take corrective actions if necessary. This vigilance is vital for the safe and efficient unloading of LNG.
In summary, the chief officer's role during LNG discharge is multifaceted and complex. They are responsible for detailed planning, managing ballast water, ensuring team collaboration, and monitoring cargo. Their awareness and planning are vital to maintain balance and handle vessels through changes in cargo weight. The stakes are high, and the consequences of mismanagement can be severe. Thus, the chief officer's expertise and leadership are indispensable in this intricate operation.
The Complex Dance of Cooling and Pressure Management
When it comes to unloading Liquefied Natural Gas (LNG) from a ship, the process is far more intricate than one might imagine. It’s not just about connecting hoses and letting the liquid flow. There’s a meticulous dance of cooling and pressure management that must be executed flawlessly to ensure safety and efficiency.
Details of the Cooling Process Before LNG Discharge Starts
Before the LNG can be discharged, the onboard systems must be prepared. This involves cooling the lines and equipment that will handle the LNG. The target temperature for the liquid header cooling is a staggering -100°C. This is essential because LNG is stored at extremely low temperatures, and introducing it into warmer pipes without proper cooling can lead to catastrophic failures.
Imagine pouring a cold drink into a warm glass. If the glass is too warm, it might crack. Now, apply that analogy to the massive pipes and tanks used for LNG. The stakes are much higher. The cooling process involves circulating a small amount of LNG through a system called the spray header to gradually bring the temperature of the entire system down.
Unique Challenges Posed by Thermal Shock
One of the most significant challenges in this process is thermal shock. This occurs when a material experiences a sudden change in temperature. For LNG operations, this could mean introducing a liquid that is hundreds of degrees below freezing into pipelines that are at normal temperature. The result? Potential cracking or shattering of the metal components.
To mitigate this risk, a gradual cooling process is employed. The crew carefully monitors the temperature of the lines, ensuring that they cool down slowly and evenly. This is crucial for maintaining the integrity of the equipment and ensuring a safe transfer.
How LNG Interacts with Onboard Systems During Transfer
As LNG flows out of the tanks, it interacts with various onboard systems. The crew must monitor the pressure and temperature continuously. Any abnormalities can indicate a problem that requires immediate attention. The pressure must remain stable to facilitate a safe transfer. If there are fluctuations, operational changes must be made swiftly.
During this process, the ship utilizes a closed-loop system to prevent wastage. This means that any vapor produced during the transfer is captured and returned to the tanks. This not only conserves LNG but also helps maintain the required pressure levels. The system is designed to ensure that nothing goes to waste, which is both economically and environmentally beneficial.

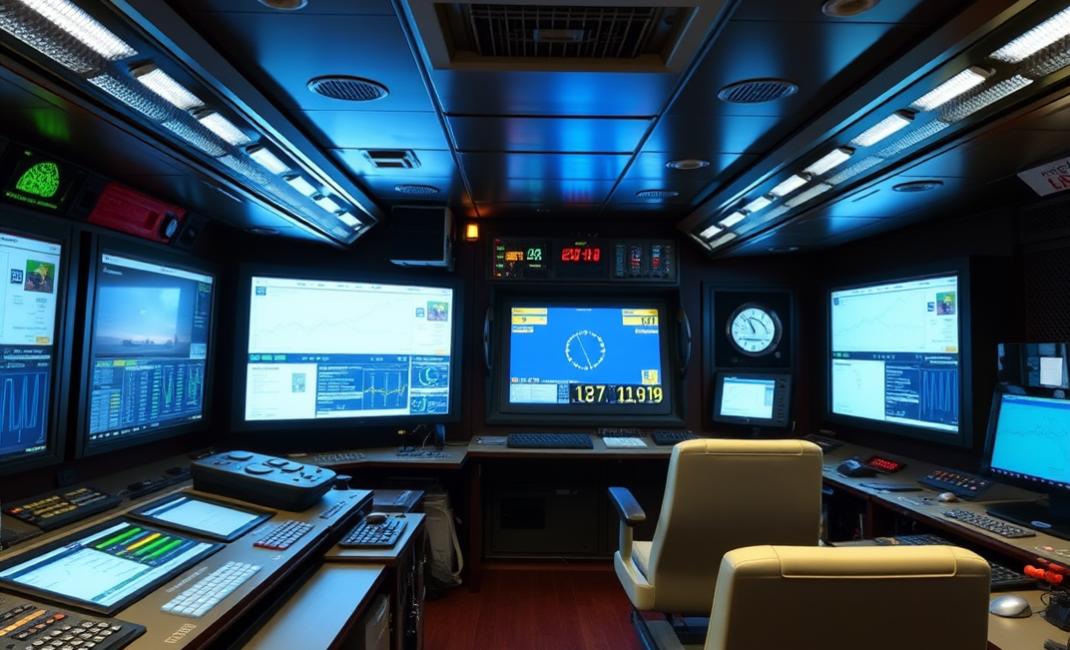

Monitoring Pressure and Temperature as LNG Flows Out
Monitoring systems play a critical role in the safe unloading of LNG. The crew keeps a close eye on various parameters, including:
- Liquid levels in the cargo tanks
- Temperature at the liquid crossover
- Pressure in the vapor header
By tracking these metrics, they can identify any potential issues early on. As one Cargo Engineering Specialist aptly put it,
“Maintaining a stable environment means the difference between a successful operation and disaster.”
The Use of a Closed-Loop System to Prevent Wastage
In the world of LNG operations, efficiency is key. The closed-loop system ensures that any vapor produced during the unloading process is not lost. Instead, it is redirected back into the tanks, maintaining the pressure and preventing any loss of product. This system is not just a best practice; it’s a necessity in the highly regulated LNG industry.
| Parameter | Value |
|---|---|
| Target Temperature for Liquid Header Cooling | -100°C |
| Pressure Stabilization Levels of Tanks During Operations | Specific levels maintained as per operational guidelines |
Addressing the complexities of keeping everything cold and stable is crucial for the success of the entire operation and safety. The careful orchestration of cooling processes, monitoring systems, and pressure management ensures that LNG can be transferred safely and efficiently, minimizing risks and maximizing operational effectiveness.
The Final Checks: Inspecting Before Discharge
Before any unloading operation begins, the final checks are crucial. This phase is often underestimated, yet it holds the key to a safe and efficient discharge process. It involves a series of meticulous inspections and confirmations that ensure everything is in order. So, what does this process entail?
1. The Process of the Last Joint Inspection
The last joint inspection is a collaborative effort between the ship's crew and the terminal staff. They come together to review all systems and protocols. This is not just a formality; it’s a vital step that significantly reduces risks during discharge. Imagine it as a final rehearsal before a big performance. Everyone needs to know their role and be on the same page.
- Both teams go through a comprehensive checklist.
- They confirm that all safety measures are acknowledged and agreed upon.
- Every crew member must comply with established protocols.
As one Terminal Safety Officer aptly put it,
"In this business, complacency is the real enemy. Every check counts, no matter how minor it seems."
2. The Essential Role of Emergency Shutdown Systems
Emergency shutdown systems (ESD) are designed to act under specific conditions. Their functionality is paramount for safety. Imagine a fire alarm in a building; it needs to work perfectly to ensure everyone’s safety. Similarly, these systems must be operational and tested before unloading begins.
During the final checks, the crew verifies that the ESD systems are fully functional. This includes testing alarms and ensuring that all emergency protocols are in place. If something goes wrong during discharge, these systems must be ready to shut everything down immediately.
3. Identifying Potential Leaks and Ensuring Equipment Integrity
Another critical aspect of the final checks is identifying potential leaks. The crew inspects all connections, flanges, and equipment for any signs of wear or damage. This is akin to checking the tires on a car before a long trip. If there’s a leak, it can lead to catastrophic consequences.
- They often use a soap and water solution to check for bubbles.
- Any sign of a leak must be addressed before proceeding.
Ensuring equipment integrity is not just about preventing leaks; it’s about maintaining the entire system’s functionality. Every piece of equipment must be in optimal condition to handle the extreme conditions of liquefied natural gas (LNG).
4. Communication Lines: Maintaining Fluid Dialogues During Operations
Effective communication is the backbone of any successful operation. During the final checks, maintaining fluid dialogues between the ship and terminal staff is essential. This constant communication helps keep everyone informed and aligned.
From the moment the ship approaches the dock, both teams are in touch. They discuss everything from the unloading arms' configuration to the safety measures in place. This ongoing dialogue is vital for ensuring that everyone understands their roles and responsibilities.
5. Understanding the Role of Checklist Assurance
Checklists are not just pieces of paper; they are the lifelines of safety and efficiency. The final inspection relies heavily on these checklists to ensure that no detail is overlooked. It’s a systematic approach that helps prevent errors.
- Each item on the checklist is confirmed by both teams.
- They ensure that all critical safety procedures have been acknowledged.
This checklist assurance fosters a culture of accountability. When everyone knows they have to check off their tasks, it creates a sense of responsibility. It’s a shared commitment to doing things the right way and keeping everyone safe.
In summary, the final checks before discharge are a complex yet essential process. They involve thorough inspections, effective communication, and a commitment to safety. By adhering to these protocols, the crew can significantly reduce risks and ensure a smooth unloading operation. After all, in the world of LNG, every detail matters. The stakes are high, and the safety of everyone involved depends on these final checks.
Step-by-Step: Discharging LNG — A Sequential Process
Discharging Liquefied Natural Gas (LNG) from a ship is a complex operation. It may seem straightforward at first glance, but it involves a meticulous sequence of procedures. Every step is critical. The unloading process is akin to a dance with numerous elements that must align perfectly to ensure safety and efficiency in operations. As a Senior Maritime Engineer once said,
“It’s a synchronized dance; if one step falters, the entire operation can face setbacks.”
1. Outlining the Specific Sequence of Unloading Procedures
The unloading of LNG is not just about connecting hoses and pumping out liquid. It begins long before the ship arrives at the terminal. The first step is ensuring compatibility between the ship and the shore. Think of it like plugging in an appliance; if the plug doesn’t fit, it won’t work. This compatibility extends beyond physical connections. It involves understanding each other's equipment and protocols.
Once the ship approaches the dock, a pre-discharge meeting occurs. Representatives from the ship and terminal staff gather to discuss the unloading plan. They review safety measures, ensuring everyone is on the same page. This meeting is crucial for effective communication.
2. Importance of Communication at Each Step
Effective communication is vital throughout the unloading process. From the initial approach to the final disconnection, every detail must be communicated clearly. The ship’s crew must understand the terminal's requirements and vice versa. This ongoing dialogue helps prevent misunderstandings that could lead to safety hazards.
During the unloading, constant communication is maintained. The crew monitors the cargo tanks, recording levels, temperatures, and pressures. They use a cargo monitoring record to keep track of the discharge progress. If anything seems off, they can address it immediately.
3. Equipment Operation: Closing and Opening Valves
Equipment operation is another critical aspect of the unloading process. Each valve plays a role in directing the flow of LNG. Understanding how to open and close these valves is essential for maintaining efficiency. The chief officer oversees this operation, ensuring that every valve is operated correctly.
For example, when starting the first cargo pump, the system will automatically close the branch valve to isolate the tank. Then, it opens the discharge valve partially to build pressure. This sequence is crucial to avoid overwhelming the system.
4. Monitoring Pumps: What to Watch for in Performance
Monitoring the performance of pumps is essential during the unloading process. The crew must keep a close eye on the pump motors, checking the amp meters for stability. If the current is too high, it may indicate a blockage. This is similar to watching the gauges on a car's dashboard; it helps ensure everything runs smoothly.
As the unloading progresses, the crew must adjust the flow based on the unloading tank's level. When the level drops, the pumps work harder to maintain the flow. They gradually close the discharge valves to maintain the right pressure difference. This fine-tuning is crucial to avoid damaging the pumps.
5. Adjusting Flow Based on the Unloading Tank's Level
As the LNG is pumped out, the crew must continuously monitor the tank levels. When the level hits a certain mark, they must adjust the flow accordingly. This is a delicate balance. If the flow rate drops too low, it could damage the pumps. The manual specifies a minimum flow rate of about 658 cubic meters per hour.
Throughout this process, the crew must remain vigilant. They check for fluctuations in the readings and make adjustments as necessary. This attention to detail ensures the operation runs smoothly and safely.
6. The Art and Science of LNG Discharge
The entire process of discharging LNG is both an art and a science. It relies heavily on real-time data to adapt to changing conditions. Each step requires careful planning and execution. The crew must be prepared for any challenges that may arise.
In conclusion, discharging LNG is a complex operation that requires a well-coordinated effort. From the initial approach to the final disconnection, every detail matters. The importance of communication, equipment operation, and monitoring cannot be overstated. With the right procedures in place, the unloading process can be executed safely and efficiently.
The Future of LNG Operations: Innovations and Safety Enhancements
Liquefied Natural Gas (LNG) operations are evolving rapidly. As the demand for energy increases, so does the need for innovative solutions in LNG unloading and transportation. The industry is embracing new technologies to enhance safety and efficiency. But what exactly does the future hold for LNG operations? Let's explore some key areas of innovation.
Emerging Technologies Improving LNG Operations
One of the most exciting developments in LNG operations is the integration of emerging technologies. These advancements are transforming how LNG is unloaded and transported. For example, advanced sensors and monitoring systems are now commonplace. They provide real-time data on temperature, pressure, and flow rates. This data helps operators make informed decisions quickly.
Moreover, predictive analytics is becoming a game changer. By analyzing historical data, companies can forecast potential issues before they arise. This proactive approach minimizes downtime and enhances safety. It’s like having a crystal ball for operations. Wouldn’t that be a relief for operators?
The Role of Automation in Reducing Human Error
Automation is another critical factor in improving LNG operations. By automating certain processes, companies can significantly reduce the risk of human error. For instance, automated systems can handle routine tasks such as monitoring and adjusting flow rates. This allows human operators to focus on more complex decision-making tasks.
In fact, many LNG facilities are now equipped with integrated automation systems. These systems streamline operations and ensure that safety protocols are followed. As a result, the likelihood of accidents decreases. It’s a win-win situation for both efficiency and safety.
Innovative Safety Systems Being Deployed
Safety is paramount in LNG operations. The industry is continuously developing innovative safety systems to protect workers and the environment. For example, advanced leak detection systems are being implemented. These systems can identify even the smallest leaks in real time, allowing for immediate action.
Additionally, many facilities are adopting rigorous safety training programs. These programs ensure that all personnel are well-versed in emergency procedures. As one maritime technology expert stated,
“Every innovation builds a safer, more efficient future for LNG operations.”This commitment to safety is crucial as the industry grows.
Training the Next Generation of LNG Professionals
As technology advances, so does the need for skilled professionals. Training the next generation of LNG workers is essential. Educational institutions are now offering specialized programs focused on LNG operations. These programs equip students with the knowledge and skills needed to thrive in this evolving field.
Moreover, on-the-job training is becoming increasingly important. Experienced professionals mentor new hires, sharing valuable insights and best practices. This hands-on approach ensures that the workforce is prepared for the challenges ahead. After all, the future of LNG operations relies on a skilled and knowledgeable workforce.
Predicting Future Trends in LNG Unloading Procedures
Looking ahead, several trends are likely to shape LNG unloading procedures. First, we can expect a greater emphasis on sustainability. As environmental concerns grow, LNG operations will need to adopt greener practices. This may include using renewable energy sources to power facilities or implementing more efficient unloading methods.
Additionally, the use of drones and robotics in LNG operations is on the rise. These technologies can perform inspections and maintenance tasks, reducing the need for human intervention in hazardous areas. Imagine a future where drones handle routine checks, allowing workers to focus on more critical tasks.
Finally, collaboration between companies will become increasingly important. Sharing best practices and technologies can lead to industry-wide improvements. By working together, companies can enhance safety and efficiency across the board.
In conclusion, the future of LNG operations is bright. With emerging technologies, automation, innovative safety systems, and a focus on training, the industry is poised for significant advancements. As we navigate these changes, one thing is clear: innovation is essential to meet growing demands while ensuring safety and sustainability. The LNG sector is not just about moving gas; it’s about building a safer, more efficient future for everyone involved.
TL;DR: Unloading LNG isn’t just about connecting some hoses; it involves stringent safety checks, precise operations, and in-depth knowledge of both ship and terminal systems. Understanding each phase of the process is essential for safe deliveries of this energy-dense liquid.
